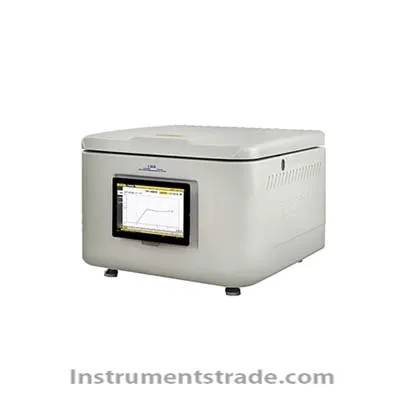

C360H Water Vapor Permeability Testing System

Product ID:HZBZtsy034

Price: Please inquire PDF Format
Supply Ability:50 SETS/MON
Port:SHENZHEN
share:
  • Product Introduction
  • Consulting
  • Model NumberC360H
    Brand NameJINANLANGUANG
    Payment TermsTT,PAYPAL
    C360H Water Vapor Permeability Testing System
    Introduction:
    This product is based on the principle of weight based water vapor transmission testing, designed and manufactured in accordance with ASTME96 and GB/T 1037 standards. It provides a wide range and high efficiency water vapor transmission detection test for low, medium, and high water vapor barrier materials. Suitable for testing the water vapor permeability of films, sheets, paper, fabrics, non-woven fabrics, and related materials in the fields of food, medicine, medical devices, and daily chemistry.
    characteristic:
    1. New generation advanced testing chamber and moisture permeable cup
    The patented test chamber and permeable cup designed by advanced fluid mechanics and thermodynamic structure analysis make the temperature and humidity more uniform and stable, the test cycle shorter, and the results more accurate.
    2. Excellent testing ability of high and low barrier materials
    Real time measurement and testing of environmental conditions for precise adjustment and calculation, making the testing of high barrier materials more accurate and the testing repeatability of low barrier materials better.
    3. Automatic and precise control of temperature, humidity, and wind speed
    Cubic constant temperature of cabin space; Real time measurement and automatic adjustment of wind speed; Equipped with an efficient water mist free humidity automatic adjustment device to meet the needs of long-term continuous testing; The gas drying device does not require replacement of the inner core, and its continuous working life can reach 20000 hours.
    4. Easy to use and efficient system functions
    Equipped with high-performance processors and the Windows 10 operating system, it is versatile for various software and devices.
    Automatic testing mode, no need for manual adjustment to quickly obtain accurate results.
    Professional testing mode provides flexible and rich instrument control functions to meet personalized scientific research needs.
    The unique DataShieldTM data shield system interfaces with user data centralized management requirements and supports multiple data formats for export; Adopting reliable security algorithms to prevent data leakage; Supports universal wired and wireless local area networks, optional dedicated wireless networks, and supports access to third-party software.
    Technical parameters:
    Test efficiency: 0.01g/(m2 • day)~0.5g/(m2 • day)
    0.0006g/(100in2•day)0.0323g/(100in2•day)
    >24 hours
    0.5 g/(m2•day)5 g/(m2•day)
    0.0323g/(100in2•day)0.3225g/(100in2•day)
    12-24 hours
    5 g/(m2•day)
    0.3225 g/(100in2•day)
    ≤ 12 hours
    Maximum range: weight reduction method
    10000/n (1-12 pieces) g/(m2 • day)
    645/n (1-12 pieces) g/(100cm2 • day)
    Weight gain method
    1200 g/(m2 • day) per piece
    77g/(100cm2 • day) per piece
    Number of testing stations: 12
    Test temperature : 20-55 ± 0.2
    Test humidity RH: 10%~90% ± 1%
    Sample size: Φ 74mm
    Sample thickness: ≤ 3mm
    Testing method: weight gain method, weight loss method
    Standard test area: 33cm2
    Carrier gas specification: compressed air
    Carrier gas drying: Long life drying device, no need to replace the inner core
    Carrier gas humidification: built-in high-efficiency water mist free humidification
    Air source pressure: ≥ 0.6MPa
    Interface size: Φ 6mm polyurethane pipe

  • Introduction:
    This product is based on the principle of weight based water vapor transmission testing, designed and manufactured in accordance with ASTME96 and GB/T 1037 standards. It provides a wide range and high efficiency water vapor transmission detection test for low, medium, and high water vapor barrier materials. Suitable for testing the water vapor permeability of films, sheets, paper, fabrics, non-woven fabrics, and related materials in the fields of food, medicine, medical devices, and daily chemistry.
