Position: Home > > Physical property test > Testing machine > Drop test machine > BF-F-815S battery pack drop test bench

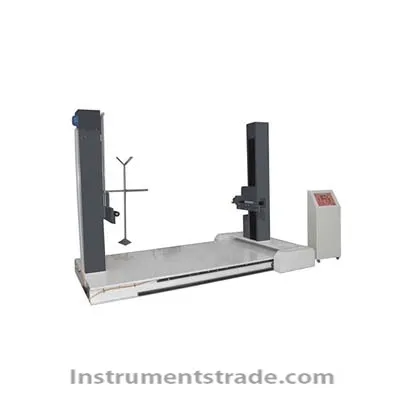

BF-F-815S battery pack drop test bench

Product ID:WSHdl017

Price: Please inquire PDF Format
Supply Ability:20SETS/MON
Port:SHENZHEN
share:
  • Product Introduction
  • Consulting
  • Model NumberBF-F-815S
    Brand NameYIMA
    Payment TermsT/T, paypal
    Introduction:
    Battery pack drop test bench through the way of free fall, the vertical impact test on the specimen. Specimens are free to choose face, edge, angle drop test three states, drop test height can be preset in advance. When the specimen rose to the preset height automatically stop positioning. According to the size of the product to choose from Test the distance between the arm, electric width. The testing machine freeing mechanism is flexible and reliable, to ensure that the specimen in the release of free and free fall on the way without any external force, so as to ensure that the specimen required drop status. Drop test bench to meet the standard: GB / T31467.3-2017
    Technical Parameters:
    Model: BF-F-815S
    Drop height: 800-1500mm (adjustable)
    Machine weight: about 1300KG
    Maximum allowable specimen weight: 0 ~ 300KG
    Allowable size of the specimen mm: W2000 x D2000 x H1000mm
    Dimensions: W3200 X D2200 X H2500mm
    Control mode: the host and control remote control
    Display: digital display, adjustable
    Test methods: surface, edge, angle drop in all directions
    Drop floor media: standard iron (optional: cement board, marble board, wood)
    Drop and lift methods: electric drop and lift
    Power supply: AC 380V 50HZ 4.0KW
    Safety alarm device: leakage, over-temperature, over-voltage, overload, over-current protection, abnormal sound and light alarm, smoke alarm lights, etc.
    Security: Four weeks to install explosion-proof fence device

  • Introduction:
    Battery pack drop test bench through the way of free fall, the vertical impact test on the specimen. Specimens are free to choose face, edge, angle drop test three states, drop test height can be preset in advance. When the specimen rose to the preset height automatically stop positioning. According to the size of the product to choose from Test the distance between the arm, electric width. The testing machine freeing mechanism is flexible and reliable, to ensure that the specimen in the release of free and free fall on the way without any external force, so as to ensure that the specimen required drop status. Drop test bench to meet the standard: GB / T31467.3-2017
