Position: Home > > Lab general equipment > Gas production / processing equipment > Hydrogen generator > AYAN-HC500ml hydrogen generator (pure water type)

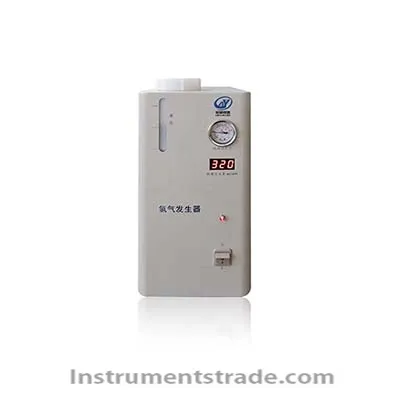

AYAN-HC500ml hydrogen generator (pure water type)

Product ID:SYQFCqq014

US$0.00 ~ US$1.00 PDF Format
Supply Ability:50 SETS/MON
Port:SHENZHEN
share:
  • Product Introduction
  • Consulting
  • Model NumberAYAN-HC500ml
    Brand NameHANGZHOUANYAN
    Payment TermsTT,PAYPAL
     AYAN-HC500ml hydrogen generator (pure water type)

    Introduction:
    The hydrogen generator is composed of electrolytic cell, pure water tank, hydrogen/water separator, collector, dryer, sensor, pressure regulating valve, switching power supply and other components.
    Features:
    1. Using the new SPE electrolytic pure water technology, ultra-pure water must be supplemented for daily use, and hydrogen can be produced by turning on the power switch.
    2. The gas circuit parts are all made of stainless steel tubes, electropolished, ultrasonically cleaned, equipped with an overpressure protection device, and two-stage purification.
    3. The unique anti-return device ensures that the instrument will never return to the liquid.
    4. The electrolytic material is made of imported special precious metals, which can effectively improve the electrolysis efficiency and keep the temperature of the cell body constant, which greatly improves the service life of the electrolytic cell.
    5. The output flow is stable, automatic tracking, the purity is not attenuated, and it can be used continuously.
    6. Digital display of hydrogen production is convenient for observing the working status of the instrument and judging faults.
    Technical parameter:
    Model: AYAN-HC500ml
    Hydrogen purity: ≥99.999%
    Output flow: 0-500ml∕min
    Output pressure: 0-0.4Mpa adjustable (factory setting 0.3Mpa)
    Working power: 220V±10%; 50HZ±5%
    Maximum power: 120W
    Environmental conditions: Ambient humidity: 0-50; relative humidity: ≤85%
    Dimensions: 320*180*350mm
    Output interface: 1/8 inch/Φ3 or other
    Machine weight: 12Kg
    Machine type: SPE pure water type
  • Introduction:
    The hydrogen generator is composed of electrolytic cell, pure water tank, hydrogen/water separator, collector, dryer, sensor, pressure regulating valve, switching power supply and other components.
