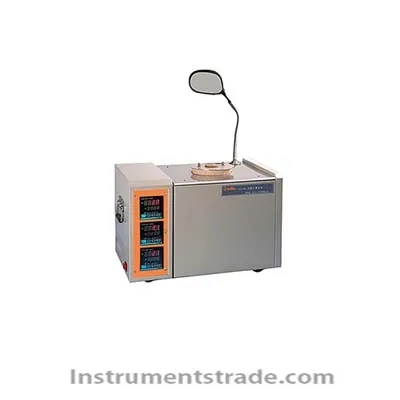

A1130 Autoignition Point Tester Introduction
The A1130 self-ignition point tester was developed in accordance with the national standard of the Ministry of Electric Power DL / T706 "Method for Determining the Anti-Fuel Self-ignition Point for Power Plants" and is used to determine the self-ignition point temperature of fuel resistance in the speed regulation system of generator sets above 30MW. This instrument has intelligent temperature control, uniform heating, reasonable layout and good accuracy. The internal temperature of the container is brought to thermal equilibrium, and the ignition point of the fuel resistance is observed using a reflector. The appearance of the instrument is beautiful, the test is convenient, and the performance is stable and reliable. Features
1. Use artificial intelligence adjustment algorithm for temperature control.
2. LED digital display, K-type thermocouple, main and auxiliary heaters automatically switch to make the internal temperature of the container reach thermal equilibrium.
3. The temperature of the top, middle and bottom of the flask should be controlled within 1 ℃.
4. The gimbal monitors the ignition point, and the performance is stable and reliable. Technical Parameters
Range: room temperature to 800 ° C
Accuracy: the temperature difference between the top, middle and bottom of the flask is ≤1 ℃
Ambient temperature: room temperature to 50 ° C
Relative humidity: <80%
Working power: AC220V ± 10%, 50Hz
Temperature control accuracy: ± 1 ℃
Maximum power ＜ 2000W
Introduction
A1130 auto-ignition point tester is used to measure the auto-ignition temperature of fuel resistance in the speed regulation system of generator sets above 30MW. This instrument has intelligent temperature control, uniform heating, reasonable layout and good accuracy. The internal temperature of the container is brought into thermal equilibrium, and the ignition point of the fuel resistance is observed using a reflector. The A1130 auto-ignition point tester has a beautiful appearance, convenient testing, and stable and reliable performance.
