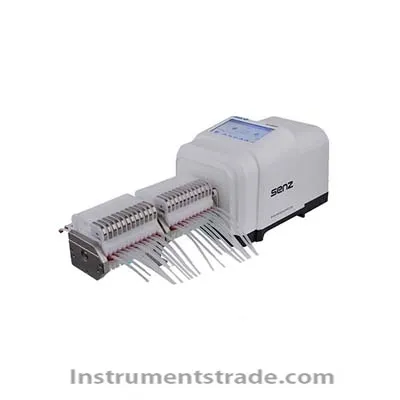

310HT flow type peristaltic pump Introduction:
The 310HT flow type peristaltic pump has a 5-inch high-definition touch LCD screen with beautiful interface, convenient operation and real-time display of operating parameters and status. A variety of external control methods, online remote operation and control can be realized without additional accessories. High torque, support multiple pump heads in series. Features:
Working mode: multiple transmission modes
1. Calibration function: multiple flow calibration methods
2. Pause function: pause during transmission
3. Online adjustment: adjust the flow during the running process
4. Density parameters: flow can be set by weight unit
5. Prompt function: display the settable flow range according to the setting parameters
6. Leakage detection: indicator light and audible alarm after leakage (optional)
7. External control: external control signal (5-24v), to achieve start and stop control
8. External control speed regulation: 0-5V, 0-10V, 4-20mA, 0-10KHz, realize linear speed adjustment
9.RS485/USB: address can be set and the screen is displayed, the baud rate is 1200-9600 bps
10. Status output: start and stop, direction, alarm Technical Parameters:
Speed range: 0.1-150 rpm
Speed resolution: 0.1 rpm (<100 rpm) 1 rpm (≥ 100 rpm)
Quantitative interval: 0.1uL-99999.999L
Timing range: 0.1s-99999.999hr
Feedback parameters: angle: 0-999 °; delay: 0-100s
Applicable power supply: AC 100~240V 50~60Hz
Working environment: Temperature: 0-40 °C Humidity: 20%-85% RH No condensation
Protection level: IP31
Dimensions: 281x190x184 mm
Introduction:
The 310HT flow type peristaltic pump has a 5-inch high-definition touch LCD screen with beautiful interface, convenient operation and real-time display of operating parameters and status. A variety of external control methods, online remote operation and control can be realized without additional accessories. High torque, support multiple pump heads in series.
